ISQ 8250
ISQ 8250
The premium-tier ISQ 8250 System on Module based on Qualcomm 8250 SoC is designed to help you deliver maximum performance for compute intensive camera and Edge AI applications with Wi-Fi 6 and 5G for the Internet of Things (IoT).
Use Cases
- Video Telematics for Fleet Management
- Digital Signage
- Healthcare
- Smart Retail
- Worker Safety
- AI Connected Cameras
SPECIFICATIONS
Components
Descriptions
Processor (QCS8250/QRB5165)
Kryo 585-64bit with 4MB L3 Cache, (Kyro gold 2.419 GHz with 256KB
L2)*3, (Kyro gold 2.842 GHz with 512KB L2)*1 and (Kyro silver 1.8 GHz
with 128KB L2) *4
Memory and Storage
System memory: 8GB LPDDR5 POP UFS memory: 128GB
OS
Android 10, Ubuntu, ROS2
Connectivity: WWAN
4G/5G through RM500Q-GL(Option)
Connectivity: WLAN
Wi-Fi 6 – 802.11ax 2×2 MU-MIMO Wi-Fi/BT 5.1
Peripheral Interfaces
Camera: USB, DVI, HDMI MIPI – CSI
Display: DVI, HDMI, DisplayPort and MIPI – DSI
High-Speed I/O: USB 3.x, PCIe
Connectivity LAN
Gigabit Ethernet
Expandable Storage
NVME/SATA SSD slot
Hi-Performance Expansion
M.2 slot with USB3.x & 2-lane PCIe Gen 3
Antennas
2X2 MIMO for 4G/5G , 2X2 for Wi-Fi/BT
Power Input
12V DC
Video Encoding
Up to 4K 120 fps 10-bit: H.265
GPU
Adreno 650, Fmax 587MHz-2X2K 60fps UI, OpenGL ES 3.2, Vulkan1.1,
DX12FL12.1, OpenCL 2.0 full profile
Digital-signal Processing/NPU
Compute DSP with Hexagon Vector extensions (dual-HVX) and
Hexagon CP2.0, Dedicated NPU230
Security
SPU 240, Secure boot3.0 using Android Strongbox and iUICC, secure
debug, secure key provisioning, TrustZone, Qualcomm® Trusted
Execution Environment 5.0, hardware-supported Keystore Crypto
engine v5 (CE5), DRBG/PRNG (FIPS- compliant), inline crypto engine
(FIPS- compliant) Secure file system, Fast trusted storage, DRM support
in Hardware
Audio
Built-in Audio Codec, Support for Multiple Digital MIC/MIC-Arrays,
Stereo Speaker outputs, Qualcomm Fluence Pro audio signal processing
(echo, noise, beamforming, beam tracking), Enhanced third party frontend audio processing
SoM Interface
Custom SMARC
Dimension
SoM – 100mmX50mm. Carrier – 23.8 cm X 20 cm
Peripheral Compatibility
AIDA – 100 (HDMI interface),
Displays: Waveshare AMOLED FHD HDMI display with touch
Storage: Western Digital NVMe SSD – SN500, SN550
WWAN: QUECTEL – RM500Q – GL (Worldwide 4G/5G support)
ISQ 5165
ISQ 5165
The ISQ 5165 which is based on Qualcomm 5165 SoC brings the latest IoT technologies in a highly integrated chipset that powers the next generation of high-compute, AI-enabled, low power robots and drones for the consumer, enterprise, defense, industrial and professional service sectors that can be connected by 5G.
Use Cases
- Autonomous Delivery Vehicles
- AMR and AGV for Industries
- Commercial and Enterprise Drones
SPECIFICATIONS
Components
Descriptions
Processor (QCS8250/QRB5165)
Kryo 585-64bit with 4MB L3 Cache, (Kyro gold 2.419 GHz with 256KB
L2)*3, (Kyro gold 2.842 GHz with 512KB L2)*1 and (Kyro silver 1.8 GHz
with 128KB L2) *4
Memory and Storage
System memory: 8GB LPDDR5 POP UFS memory: 128GB
OS
Android 10, Ubuntu, ROS2
Connectivity: WWAN
4G/5G through RM500Q-GL(Option)
Connectivity: WLAN
Wi-Fi 6 – 802.11ax 2×2 MU-MIMO Wi-Fi/BT 5.1
Peripheral Interfaces
Camera: USB, DVI, HDMI MIPI – CSI
Display: DVI, HDMI, DisplayPort and MIPI – DSI
High-Speed I/O: USB 3.x, PCIe
Connectivity LAN
Gigabit Ethernet
Expandable Storage
NVME/SATA SSD slot
Hi-Performance Expansion
M.2 slot with USB3.x & 2-lane PCIe Gen 3
Antennas
2X2 MIMO for 4G/5G , 2X2 for Wi-Fi/BT
Power Input
12V DC
Video Encoding
Up to 4K 120 fps 10-bit: H.265
GPU
Adreno 650, Fmax 587MHz-2X2K 60fps UI, OpenGL ES 3.2, Vulkan1.1,
DX12FL12.1, OpenCL 2.0 full profile
Digital-signal Processing/NPU
Compute DSP with Hexagon Vector extensions (dual-HVX) and
Hexagon CP2.0, Dedicated NPU230
Dedicated NPU230
Security
SPU 240, Secure boot3.0 using Android Strongbox and iUICC, secure
debug, secure key provisioning, TrustZone, Qualcomm® Trusted
Execution Environment 5.0, hardware-supported Keystore Crypto
engine v5 (CE5), DRBG/PRNG (FIPS- compliant), inline crypto engine
(FIPS- compliant) Secure file system, Fast trusted storage, DRM support
in Hardware
Audio
Built-in Audio Codec, Support for Multiple Digital MIC/MIC-Arrays,
Stereo Speaker outputs, Qualcomm Fluence Pro audio signal processing
(echo, noise, beamforming, beam tracking), Enhanced third party frontend audio processing
SoM Interface
Custom SMARC
Dimension
SoM – 100mmX50mm. Carrier – 23.8 cm X 20 cm
Peripheral Compatibility
AIDA – 100 (HDMI interface),
Displays: Waveshare AMOLED FHD HDMI display with touch
Storage: Western Digital NVMe SSD – SN500, SN550
WWAN: QUECTEL – RM500Q – GL (Worldwide 4G/5G support)
ISQ 6490
ISQ 6490
Unlock the true potential of ISQ 6490 which is based on the Qualcomm® QCM6490 – a cutting-edge solution optimized for IoT devices that require cutting edge features like global multi-gigabit 5G mmW/Sub-6 GHz and Wi-Fi 6E connectivity.
Use Cases
- Rugged Handheld
- Rugged Tablet
- Digital Signage
- Service Robot
- Industrial Robot

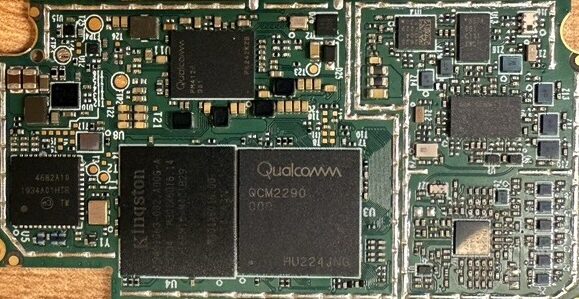

ISQ 2290
ISQ 2290
The robust entry level ISQ 2290 System-on-module based on the Qualcomm 2290 SoC delivers blazing fast LTE connectivity, enhanced GPS and advanced camera features.
Use Cases
- Industrial Handheld
- Retail Point-of-Sale (POS)
- Camera
- Asset Tracking
SPECIFICATIONS
Components
Descriptions
Processor
Quad-core Cortex-A53 64-bit processor @ 2.0 GHz
Dual ISPs and up to 25 MP camera@ 30 fps
Image and video applications via AdrenoTM 702 GPU with recording and playback
of 1080P videos @30 fps
Region & Carrier
Depends on region/customer
Memory
2 GB LPDDR4X + 32 GB EMM
OS
Android 12
Operating Temperature
-20 to + 65°C
RAT and Band Support
Customer/region/operator specific
UE Category
UE power Class 3 LTE CAT4 device (3GPP-Release 10)
FDD:150 Mbps(DL)/50 Mbps(UL)
TDD:130 Mbps(DL)/30 Mbps(UL)
WLAN
2.4 GHz & 5 GHz
802.11a/ b/g/n/ac
Bluetooth
2.1 EDR/3.0 HS/4.2 LE/5.0 LE
GNSS
GPS/ BDS/ GLONASS/ Galileo/QZSS/ SBAS, L1
Display
1 group of 4-lane MIPI DSI, HD+ (1680 × 720) @ 60 fps
Camera
2 groups of 4-lane MIPI CSI, up to 2.5 Gbps/lane
Supports 2 or 3 cameras, up to 25 MP or 13 MP + 13 MP with dual ISP
Touch Panel
Capacitive touch panel
Audio
3 analog inputs: MIC1, MIC2, MIC3 (including one noise-canceling MIC)
3 analog outputs: Line Out, earpiece, headphone
DMIC support TBD
Video
Encoder: 1080P 8-bit H.264/H.265 (HEVC) @ 30 fps
Decoder: 1080P 8-bit H.264/H.265 (HEVC)/ VP9@ 30 fps
USB
× 1, compliant with USB 2.0/ 3.1, supports USB OTG, charge, etc
(U)SIM
× 2, supports 1.8/2.95 V (U)SIM cards,
with (U)SIM card detection function,
DSDS supported
UART
× 3, up to 4 Mbps, supports hardware flow control
SD Card
× 1, SD 3.0, supports 4-bit SDIO
ISQ 8250
ISQ 8250
The premium-tier ISQ 8250 System on Module based on Qualcomm 8250 SoC is designed to help you deliver maximum performance for compute intensive camera and Edge AI applications with Wi-Fi 6 and 5G for the Internet of Things (IoT).
Use Cases
- Video Telematics for Fleet Management
- Digital Signage
- Healthcare
- Smart Retail
- Worker Safety
- AI Connected Cameras
SPECIFICATIONS
| Components | Descriptions |
|---|---|
| Processor (QCS8250/QRB5165) | Kryo 585-64bit with 4MB L3 Cache, (Kyro gold 2.419 GHz with 256KB L2)*3, (Kyro gold 2.842 GHz with 512KB L2)*1 and (Kyro silver 1.8 GHz with 128KB L2) *4 |
| Memory and Storage | System memory: 8GB LPDDR5 POP UFS memory: 128GB |
| OS | Android 10, Ubuntu, ROS2 |
| Connectivity: WWAN | 4G/5G through RM500Q-GL(Option) |
| Connectivity: WLAN | Wi-Fi 6 – 802.11ax 2×2 MU-MIMO Wi-Fi/BT 5.1 |
| Peripheral Interfaces | Camera: USB, DVI, HDMI MIPI – CSI Display: DVI, HDMI, DisplayPort and MIPI – DSI High-Speed I/O: USB 3.x, PCIe |
| Connectivity LAN | Gigabit Ethernet |
| Expandable Storage | NVME/SATA SSD slot |
| Hi-Performance Expansion | M.2 slot with USB3.x & 2-lane PCIe Gen 3 |
| Antennas | 2X2 MIMO for 4G/5G , 2X2 for Wi-Fi/BT |
| Power Input | 12V DC |
| Video Encoding | Up to 4K 120 fps 10-bit: H.265 |
| GPU | Adreno 650, Fmax 587MHz-2X2K 60fps UI, OpenGL ES 3.2, Vulkan1.1, DX12FL12.1, OpenCL 2.0 full profile |
| Digital-signal Processing/NPU | Compute DSP with Hexagon Vector extensions (dual-HVX) and Hexagon CP2.0, Dedicated NPU230 |
| Security | SPU 240, Secure boot3.0 using Android Strongbox and iUICC, secure debug, secure key provisioning, TrustZone, Qualcomm® Trusted Execution Environment 5.0, hardware-supported Keystore Crypto engine v5 (CE5), DRBG/PRNG (FIPS- compliant), inline crypto engine (FIPS- compliant) Secure file system, Fast trusted storage, DRM support in Hardware |
| Audio | Built-in Audio Codec, Support for Multiple Digital MIC/MIC-Arrays, Stereo Speaker outputs, Qualcomm Fluence Pro audio signal processing (echo, noise, beamforming, beam tracking), Enhanced third party frontend audio processing |
| SoM Interface | Custom SMARC |
| Dimension | SoM – 100mmX50mm. Carrier – 23.8 cm X 20 cm |
| Peripheral Compatibility | AIDA – 100 (HDMI interface), Displays: Waveshare AMOLED FHD HDMI display with touch Storage: Western Digital NVMe SSD – SN500, SN550 WWAN: QUECTEL – RM500Q – GL (Worldwide 4G/5G support) |
ISQ 5165
ISQ 5165
The ISQ 5165 which is based on Qualcomm 5165 SoC brings the latest IoT technologies in a highly integrated chipset that powers the next generation of high-compute, AI-enabled, low power robots and drones for the consumer, enterprise, defense, industrial and professional service sectors that can be connected by 5G.
Use Cases
- Autonomous Delivery Vehicles
- AMR and AGV for Industries
- Commercial and Enterprise Drones
SPECIFICATIONS
| Components | Descriptions |
|---|---|
| Processor (QCS8250/QRB5165) | Kryo 585-64bit with 4MB L3 Cache, (Kyro gold 2.419 GHz with 256KB L2)*3, (Kyro gold 2.842 GHz with 512KB L2)*1 and (Kyro silver 1.8 GHz with 128KB L2) *4 |
| Memory and Storage | System memory: 8GB LPDDR5 POP UFS memory: 128GB |
| OS | Android 10, Ubuntu, ROS2 |
| Connectivity: WWAN | 4G/5G through RM500Q-GL(Option) |
| Connectivity: WLAN | Wi-Fi 6 – 802.11ax 2×2 MU-MIMO Wi-Fi/BT 5.1 |
| Peripheral Interfaces | Camera: USB, DVI, HDMI MIPI – CSI Display: DVI, HDMI, DisplayPort and MIPI – DSI High-Speed I/O: USB 3.x, PCIe |
| Connectivity LAN | Gigabit Ethernet |
| Expandable Storage | NVME/SATA SSD slot |
| Hi-Performance Expansion | M.2 slot with USB3.x & 2-lane PCIe Gen 3 |
| Antennas | 2X2 MIMO for 4G/5G , 2X2 for Wi-Fi/BT |
| Power Input | 12V DC |
| Video Encoding | Up to 4K 120 fps 10-bit: H.265 |
| GPU | Adreno 650, Fmax 587MHz-2X2K 60fps UI, OpenGL ES 3.2, Vulkan1.1, DX12FL12.1, OpenCL 2.0 full profile |
| Digital-signal Processing/NPU | Compute DSP with Hexagon Vector extensions (dual-HVX) and Hexagon CP2.0, Dedicated NPU230 Dedicated NPU230 |
| Security | SPU 240, Secure boot3.0 using Android Strongbox and iUICC, secure debug, secure key provisioning, TrustZone, Qualcomm® Trusted Execution Environment 5.0, hardware-supported Keystore Crypto engine v5 (CE5), DRBG/PRNG (FIPS- compliant), inline crypto engine (FIPS- compliant) Secure file system, Fast trusted storage, DRM support in Hardware |
| Audio | Built-in Audio Codec, Support for Multiple Digital MIC/MIC-Arrays, Stereo Speaker outputs, Qualcomm Fluence Pro audio signal processing (echo, noise, beamforming, beam tracking), Enhanced third party frontend audio processing |
| SoM Interface | Custom SMARC |
| Dimension | SoM – 100mmX50mm. Carrier – 23.8 cm X 20 cm |
| Peripheral Compatibility | AIDA – 100 (HDMI interface), Displays: Waveshare AMOLED FHD HDMI display with touch Storage: Western Digital NVMe SSD – SN500, SN550 WWAN: QUECTEL – RM500Q – GL (Worldwide 4G/5G support) |
ISQ 6490
ISQ 6490
Unlock the true potential of ISQ 6490 which is based on the Qualcomm® QCM6490 – a cutting-edge solution optimized for IoT devices that require cutting edge features like global multi-gigabit 5G mmW/Sub-6 GHz and Wi-Fi 6E connectivity.
Use Cases
- Rugged Handheld
- Rugged Tablet
- Digital Signage
- Service Robot
- Industrial Robot
ISQ 2290
ISQ 2290
The robust entry level ISQ 2290 System-on-module based on the Qualcomm 2290 SoC delivers blazing fast LTE connectivity, enhanced GPS and advanced camera features.
Use Cases
- Industrial Handheld
- Retail Point-of-Sale (POS)
- Camera
- Asset Tracking
SPECIFICATIONS
| Components | Descriptions |
|---|---|
| Processor | Quad-core Cortex-A53 64-bit processor @ 2.0 GHz Dual ISPs and up to 25 MP camera@ 30 fps Image and video applications via AdrenoTM 702 GPU with recording and playback of 1080P videos @30 fps |
| Region & Carrier | Depends on region/customer |
| Memory | 2 GB LPDDR4X + 32 GB EMM |
| OS | Android 12 |
| Operating Temperature | -20 to + 65°C |
| RAT and Band Support | Customer/region/operator specific |
| UE Category | UE power Class 3 LTE CAT4 device (3GPP-Release 10) FDD:150 Mbps(DL)/50 Mbps(UL) TDD:130 Mbps(DL)/30 Mbps(UL) |
| WLAN | 2.4 GHz & 5 GHz 802.11a/ b/g/n/ac |
| Bluetooth | 2.1 EDR/3.0 HS/4.2 LE/5.0 LE |
| GNSS | GPS/ BDS/ GLONASS/ Galileo/QZSS/ SBAS, L1 |
| Display | 1 group of 4-lane MIPI DSI, HD+ (1680 × 720) @ 60 fps |
| Camera | 2 groups of 4-lane MIPI CSI, up to 2.5 Gbps/lane Supports 2 or 3 cameras, up to 25 MP or 13 MP + 13 MP with dual ISP |
| Touch Panel | Capacitive touch panel |
| Audio | 3 analog inputs: MIC1, MIC2, MIC3 (including one noise-canceling MIC) 3 analog outputs: Line Out, earpiece, headphone DMIC support TBD |
| Video | Encoder: 1080P 8-bit H.264/H.265 (HEVC) @ 30 fps Decoder: 1080P 8-bit H.264/H.265 (HEVC)/ VP9@ 30 fps |
| USB | × 1, compliant with USB 2.0/ 3.1, supports USB OTG, charge, etc |
| (U)SIM | × 2, supports 1.8/2.95 V (U)SIM cards, with (U)SIM card detection function, DSDS supported |
| UART | × 3, up to 4 Mbps, supports hardware flow control |
| SD Card | × 1, SD 3.0, supports 4-bit SDIO |
